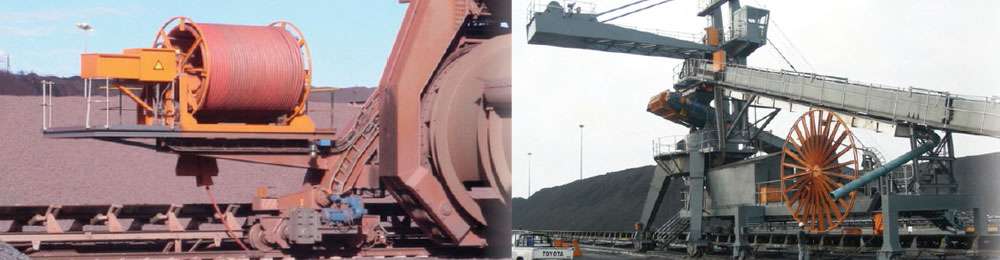

Motorised cable and hose reel drives
Cylindrical drum reel
     Mono spiral reel
Motorised cable and hose reel drives
3-2-3 Reel
Random Wrap Reel

REELING SOLUTIONS PROVIDING THE BEST OF SOUTH AFRICAN AND INTERNATIONAL KNOW-HOW AND INNOVATION

Conductor Systems has been supplying the African and European markets with versatile, cost effective and reliable reeling solutions since 1980. The type and size of reels are designed in accordance with customer requirements and can be based on one of our 4 standard configuration types or imported from our international partners.

The Random Wrap Reel is designed for short or medium cable or hose lengths. The cable / hose winds randomly onto the reel without any guiding.

The Mono Spiral Reel, the cable or hose winds on as a single spiral, and is the best method of winding if the parameters allow. Depending on the cable / hose diameter, the reel can accommodate up to 350 m cable with a speed up to 25m/min.

The Cylindrical Drum Reel is designed to wind extremely long cable / hose lengths (up to 500m). The cable or hose is wound in 2 or 3 layers on a cylindrical drum and the layers are formed by a moving guide unit.

The 3-2-3 Reel combines the advantages of both the mono spiral and semi wide spools - self guiding with a smaller and more compact diameter requirement. Winding first in 3 then 2 layers alternately.

Custom Reels:
In addition to our standard reel designs, we’ve supplied customized solutions based on some very unique requirements to assist our clients in solving very special problems. Explain your requirement to us and chances are we’ll be able to assist with a local designed and manufactured solution of international quality.

"* Cable length, reel dimensions and speeds are all dependant of the reel design and type of cable used."


CABLE & HOSE REEL FEATURES:

  • Simple and straightforward mechanical design for minimum maintenance.
  • Suitable for a wide variety of applications.
  • Reels conform to international specifications and have professional FEA certification.
  • Standard Corrosion protection with special requirements on request.

AREAS OF APPLICATION:

  • Various types of Stackers & Reclaimers.
  • Various types of Cranes.
  • Various other types of moving machinery.

BENEFITS OF USING CONDUCTOR SYSTEMS CABLE & HOSE REELING SOLUTIONS:

Designed and built in South Africa according to local conditions and customer requirements results in systems with extended lifespans with little maintenance required. Local supplier with in-house expertise and modification abilities resulting in fast corrections and support where required.

REELING CABLE

CONDUCTOR SYSTEMS supplies cable made by the leading European cable manufacturers who have developed their own range of special cables for reeling drum applications. These cables all comply with European standards (VDE, NF, IEC…):
  • BUFLEX power cable for standard reeling duty application,
  • BUFLEX control cable for standard reeling duty application,
  • PANZERFLEX power and control cable for heavier applications, particularly suitable for vertical applications.
  • PANZERFLEX HV (3, 6, 11 KV) Composite power and control cable for heavy duty applications.
  • PANZERFLEX HV (3, 6, 11 KV) Composite power, control cable and fibre optic cores for special control applications.
All cables used on motorised reeling drum must have a special lay-up to eliminate the deformation of the internal cores. The following characteristics should be inherent in the cable:
  • Flexible tinned stranded copper conductor.
  • Strength (tension, rotation, bending), i.e. mixed copper and fibre braiding.

REELING CABLE FEATURES:

  • Red polychloroprene outer sheath
  • Polychloroprene inner sheath
  • EPR rubber insulation
  • Semi-conductive layer
  • Semi-conductive tape
  • Composite copper and synthetic yarn braided screen
  • Flexible tinned stranded copper conductor
  • Earth conductor
  • Fibre Optic cable
